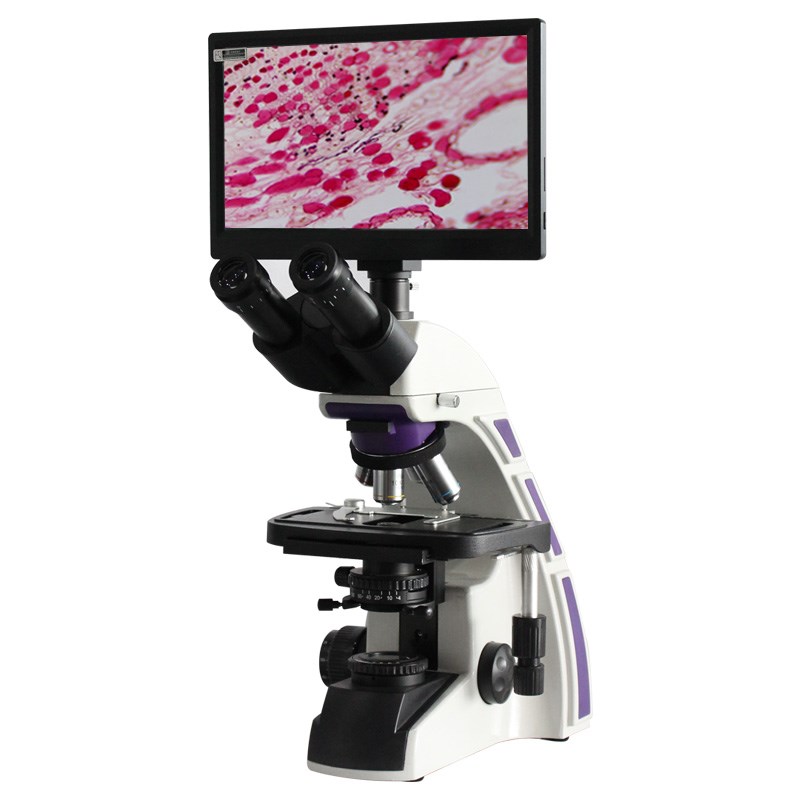

40x-1600x Trinocular biological microscope with LCD display / compound microscope

Customized logo

Customized Packaging

Graphic Customization

  • Binocular microscope with LCD display 40x-1600x/ Biological Microscope/ compound microscope

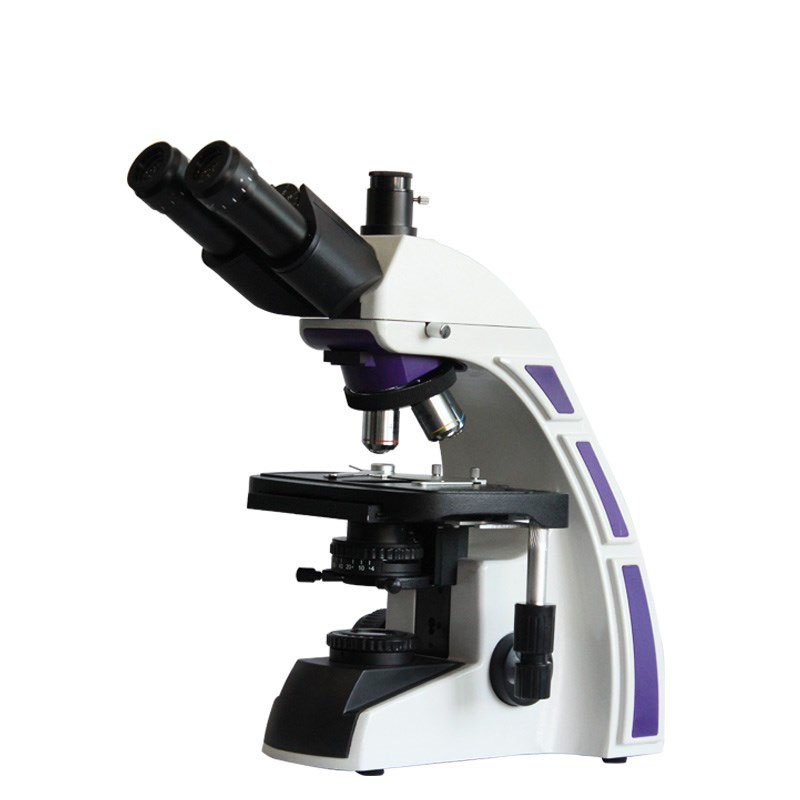

    XSP-2021T  Biological  Microscope
    Head Articulated Free Trinocular Head. Inclined at 30°,360° Rotatable.(Interpupillary Distance:55-75mm)atable
    Eyepiece PL 10x/23mm high eyepoint eyepiece,diopter adjustment
    Objective Plan achromaic objectives 4X,10X,40X,100X
    Nosepiece Backward quardruple objective nosepiece
    Focusing Coaxial Coarse & Fine Focus knobs Precision:0.002mm
    Working Stage X-axis low hand position double Layers Mechanical Stage (steel wire transmission)
    Stage Size:220x148mm  Precision:0.1mm
    Damped double slide clamp
    Moving Range X-Y: 76x50mm
    Condenser Abbe Condenser set
    Illumination 3W LED lamp with Kohler illumination system
    Power Powered By Outlet AC/DC Adapter (110V/220V)
    Optional Accessories
    Optical System Infinity achromatic correction optical system
    LCD Display 8''color LCD
    Pixels:976(H)x582(v)
    Color System:PAL/NTSC4.43/NTSC3.58/SECAM
    Nosepiece Backward quintuple objective nosepiece
    Objective   1.Achromatic objectives:40x,10x,20x,40x,60x,100x
    2.Plan objectives:20x,60X
    3.InfinityPlan Achromatic objectives:4X,10X,20x,40x,60X,100x

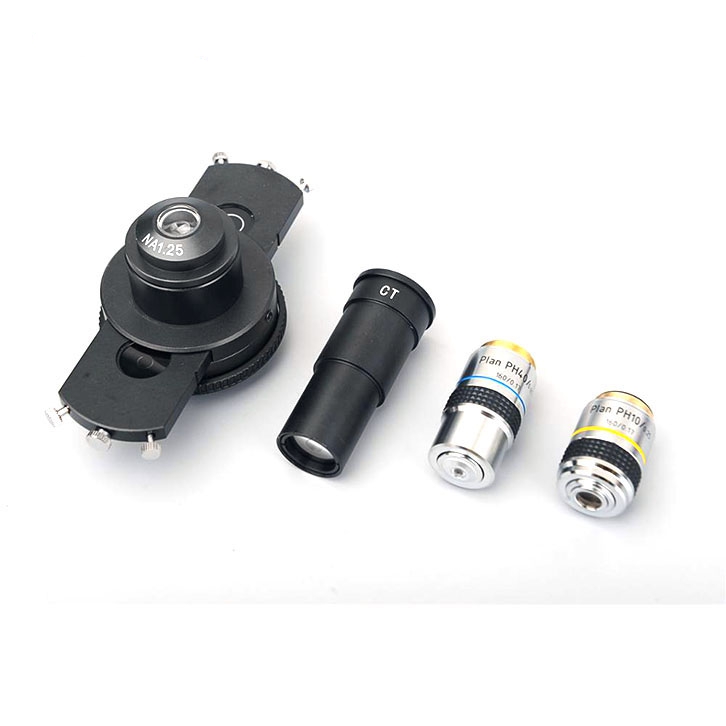

    Phase Contrast Accessory
    		 1.Dial phase contrast apparatus
    2.Insert phase contrast apparatus

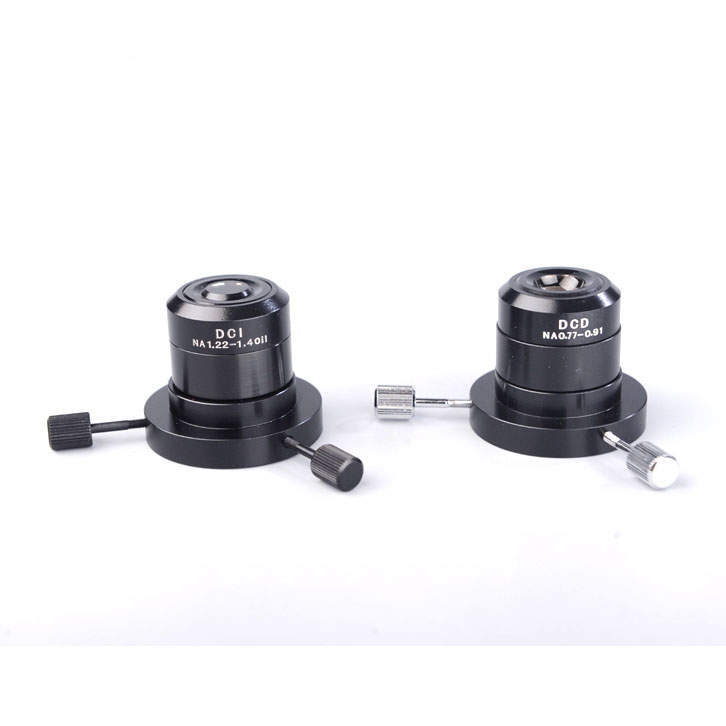

    Dark Filed Condenser
    		 1.Dry darkfiled condenser
    2.Oil-darkfiled condenser
