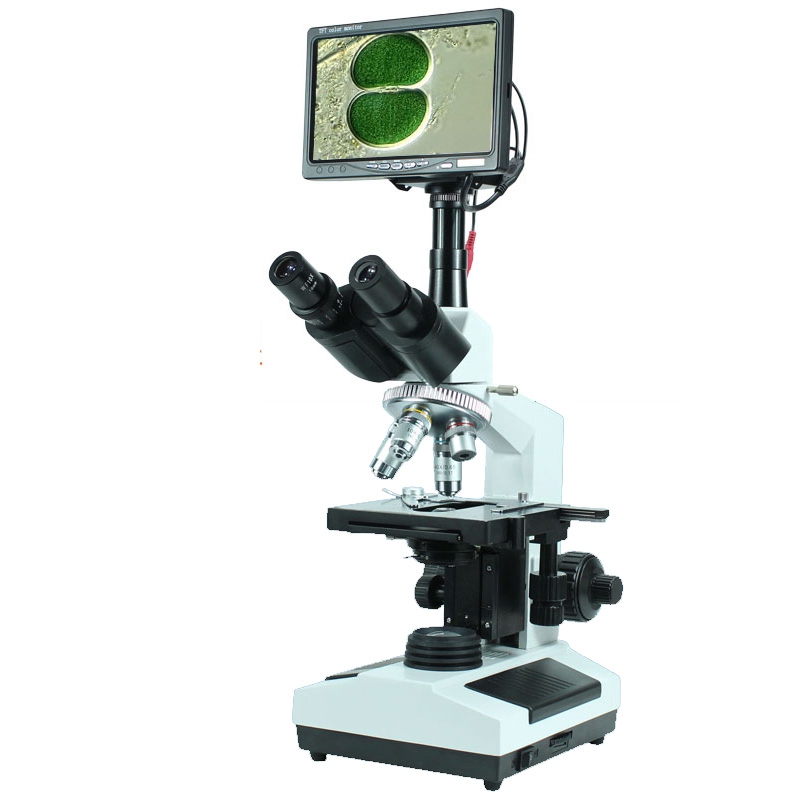

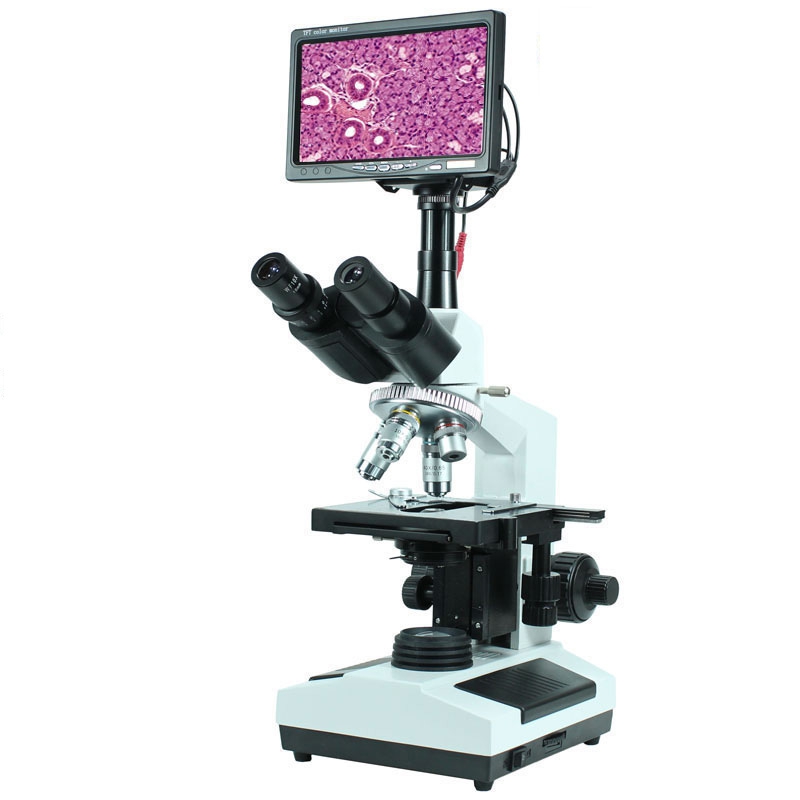

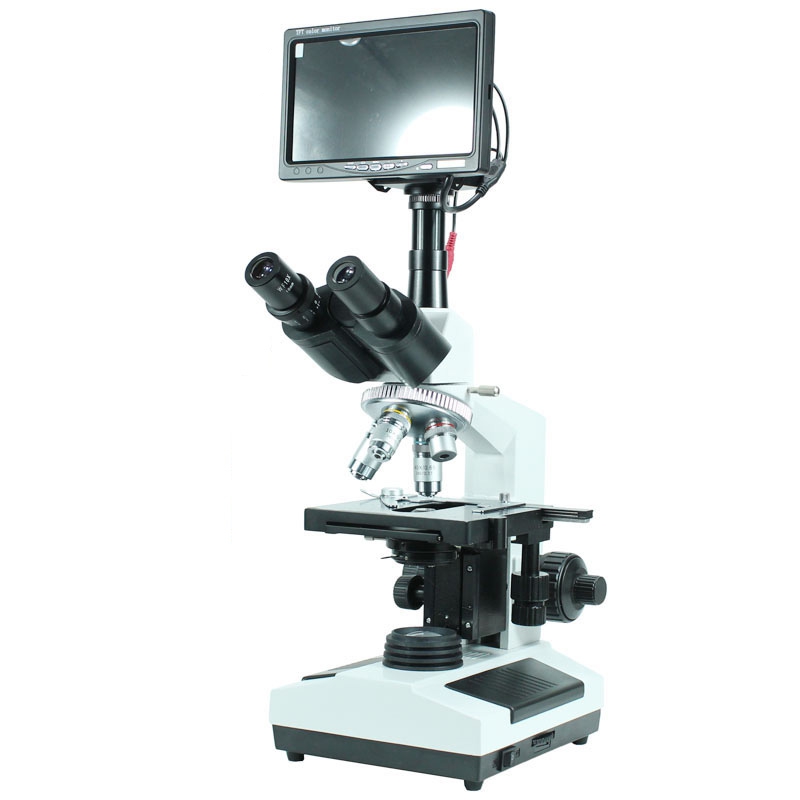

Optical High Resolution Video Trinocular Microscope With LCD Display

Customized logo

Customized Packaging

Graphic Customization

  • 1.Microscope Parameter:



    Model: XSP11-02C-LCD
    Objective system: Achromatic Objective: 4X, 10X, 40X(S),100X(S, Oil).
    Eyepiece system: Wide Field Plan-Scope Eyepiece:WF10X /18mm (Optional :WF16X).
     Light bar: ABBE Condenser: N.A. 1.25.
     Magnification: 40x-1600x.
     Observation head:

    Articulated Free Trinocular Head,Interpupillary Distance:55-75mm,45° Inclined., 360° Rotatable.
     Illumination: Built - in high brightness LED lamp,Brightness adjustable.
     Stage:  Double Layers Mechanical Stage: 125X125mm, up and down, left and right sides, can move both before and after.
     Focus system: Coaxial Coarse And Fine Focusing Adjustable .
     Net weight/set:  7kg.
    Package:  1sets/Carton 37X23X76 cm, Cross Weight/Carton:8.5kg.

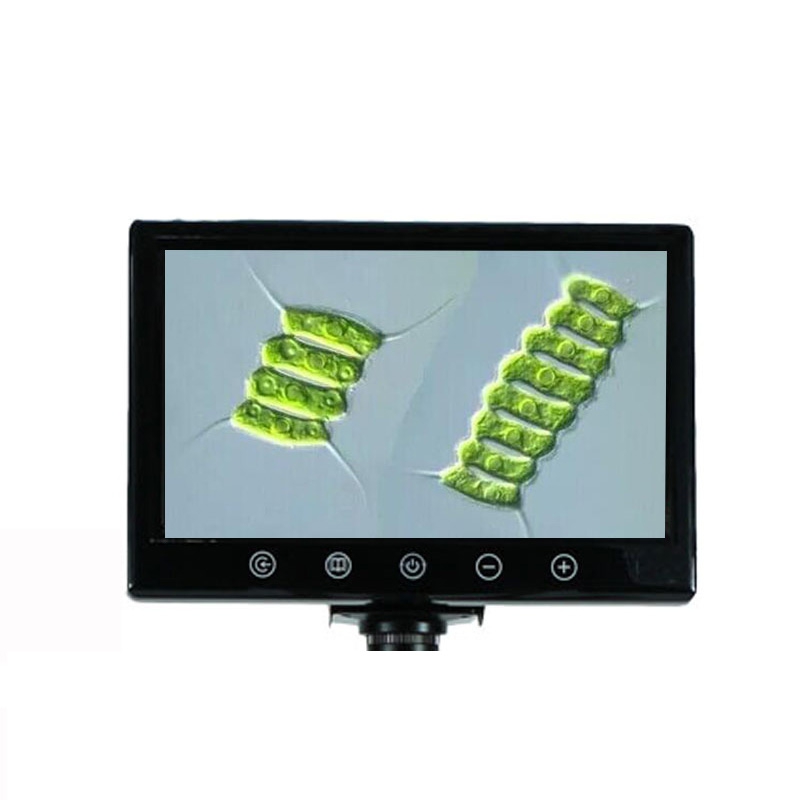

    2.Liquid crystal display:



     7 inch digital LCD screen, 800 * 600 resolution.
     True color, color 16777216, the highest support 1024 * 768 pixels.
     Support the Pal, NTSC, secam
