XSP 107BN 1600X Original Manufacturer Binocular Electric Biological Microscope
-
XSP 107BN 1600X Original Manufacturer Binocular Electric Biological Microscope
Technical parameter:
DIN Achromatic
Objective
Magnification
Numerical
Aperture
Focal
Distance
Working
Distance
Cover Glass
Thickness
Remark
4X
4
0.10mm
31.04mm
37.5mm
0.17mm
10X
10
0.25mm
17.13mm
7.316mm
0.17mm
40X
40
0.65mm
4.65mm
0.632mm
0.17mm
Spring
100X
100
1.25mm
2.906mm
0.198mm
0.17mm
Spring,Oil
Specifications:
model :XSP03-03B

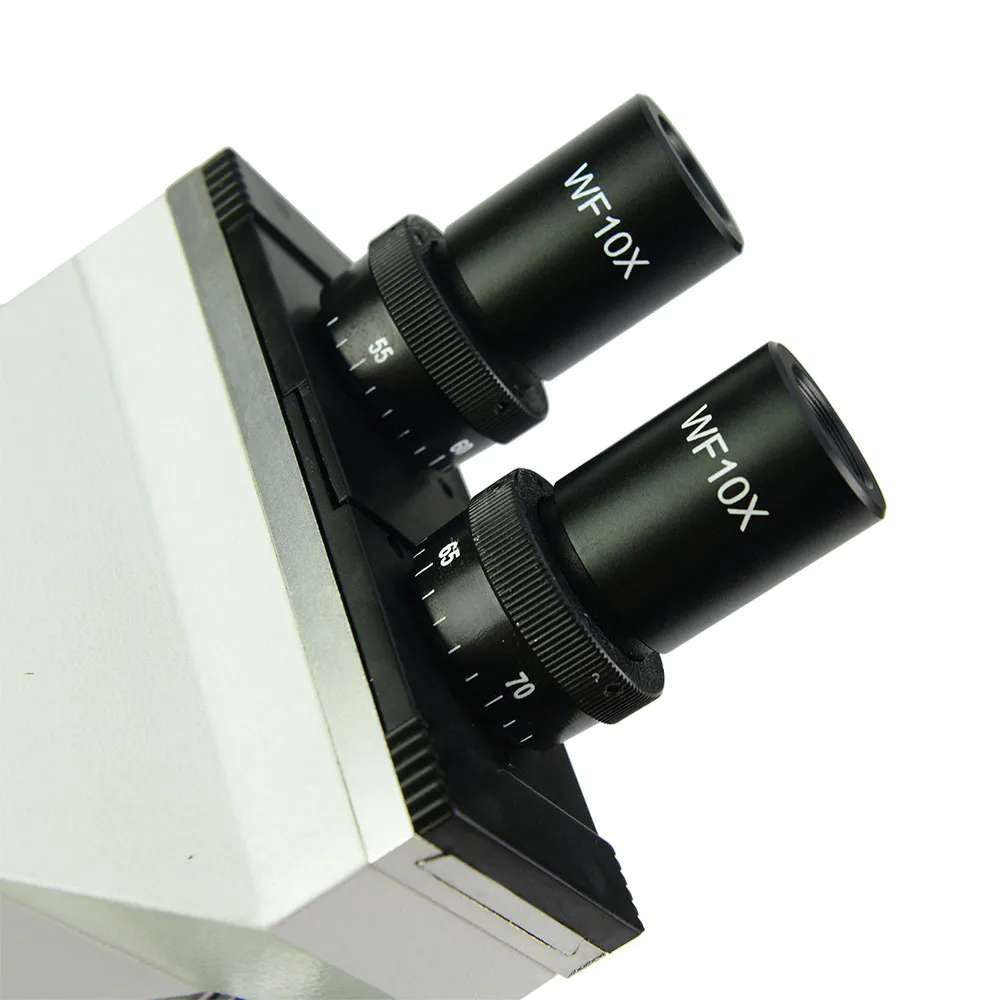

eyepiece Wide Field Plane-Scope Eyepiece: WF10X, WF16X

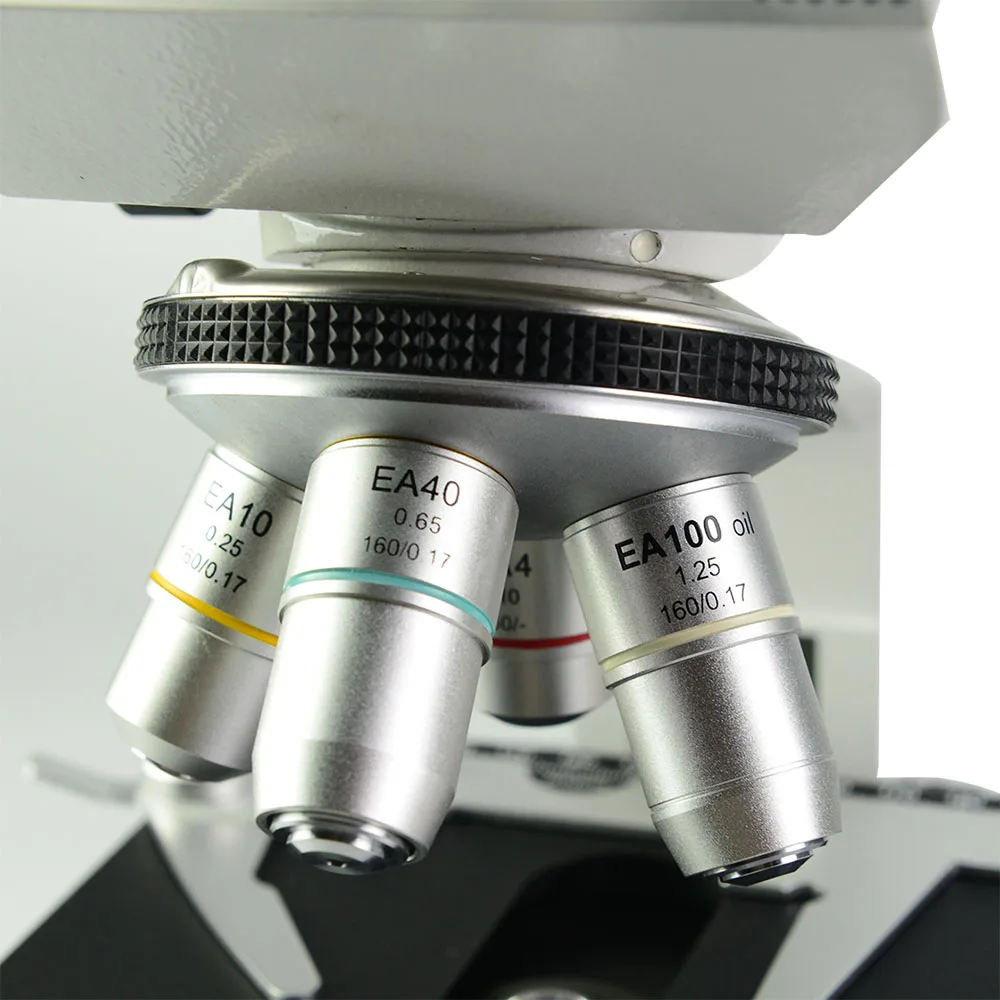

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)
Magnification Total Magnification: 40X-1600X
viewing head Sliding Binocular Head, Interpupillary Distance: 55-75mm; 45° Inclined, 360° Rotatable
nosepiece quardruple nosepiece

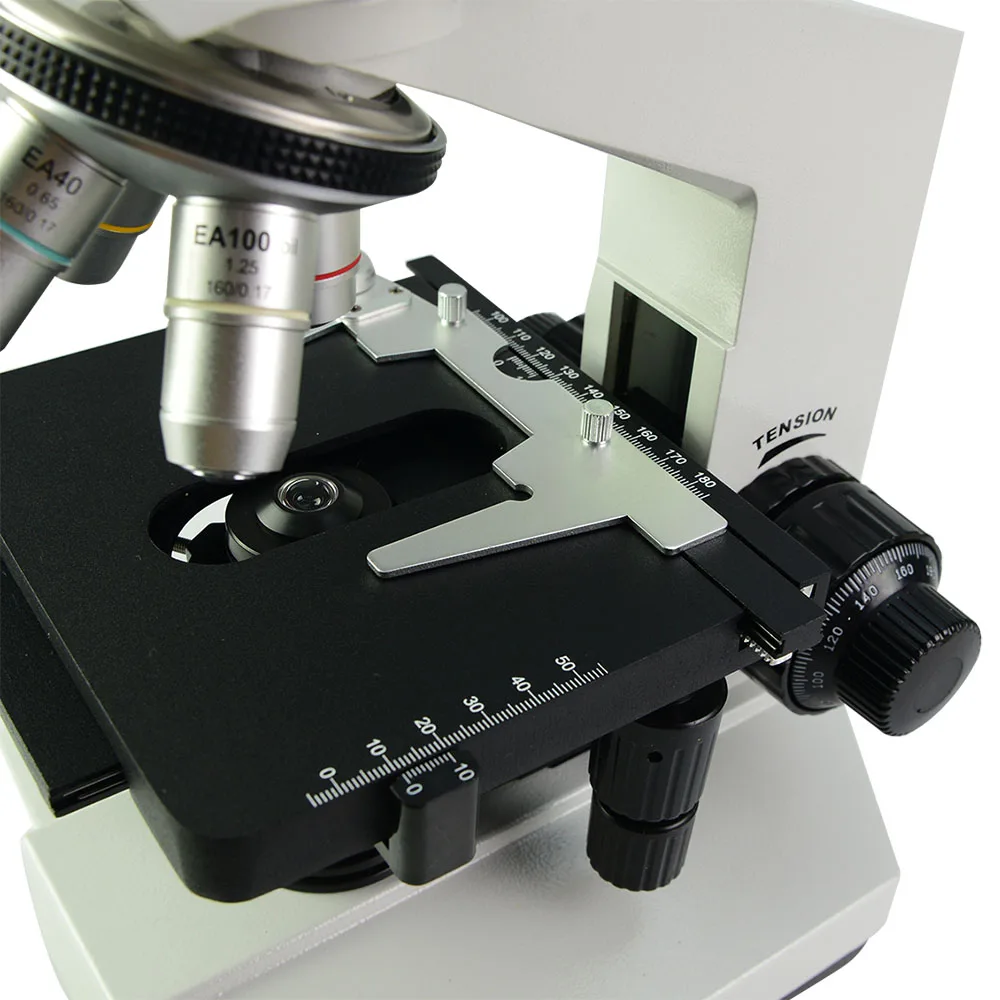

stage Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm
condensor "Ø2-Ø30mm Iris Diaphragm And Ø32 Filter
ABBE Condenser: N.A. 1.25"

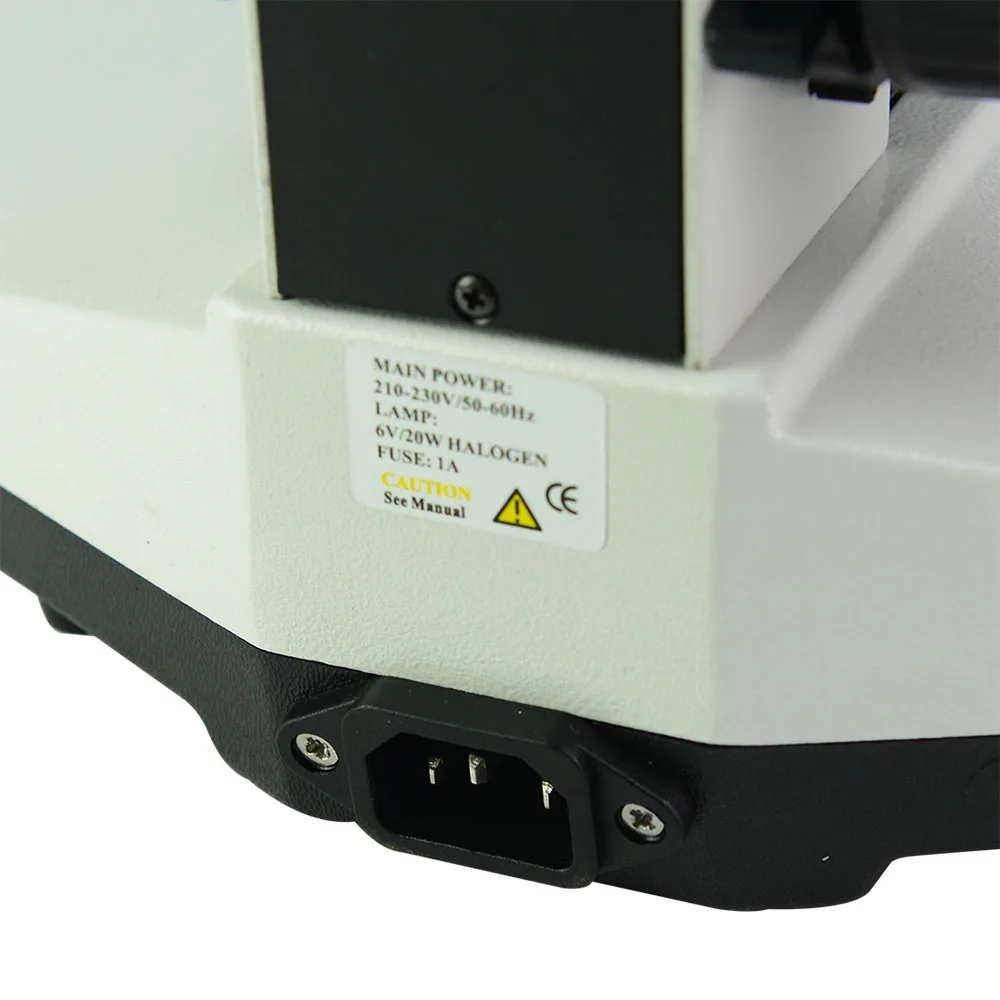

illumination Built-in Adjustable Brightness Halogen Lamp 6V/20W

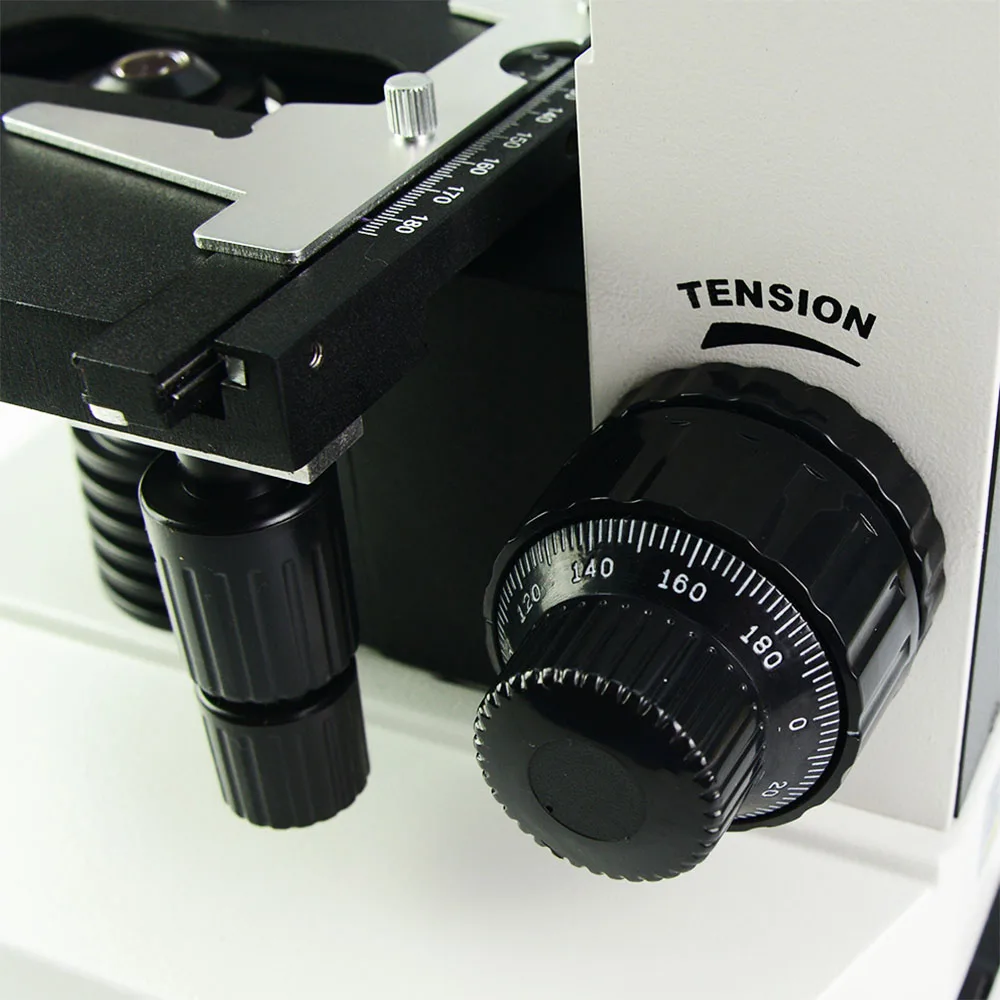

focusing Coaxial Coarse And Fine Focusing Adjustable Mechanism: 25mm, Precision: 0.002mm
Packings:
inner packing Foamed Plastic + Inner Carton
outer packing "Net Weight/Set: 6.4kg
Package: 1 Sets/Carton 38X34X50cm
Gross Weight/Carton: 8kg
