Laboratory Binocular Biological Microscope XSP07-01B

Customized logo

Customized Packaging

Graphic Customization

  • Product Description

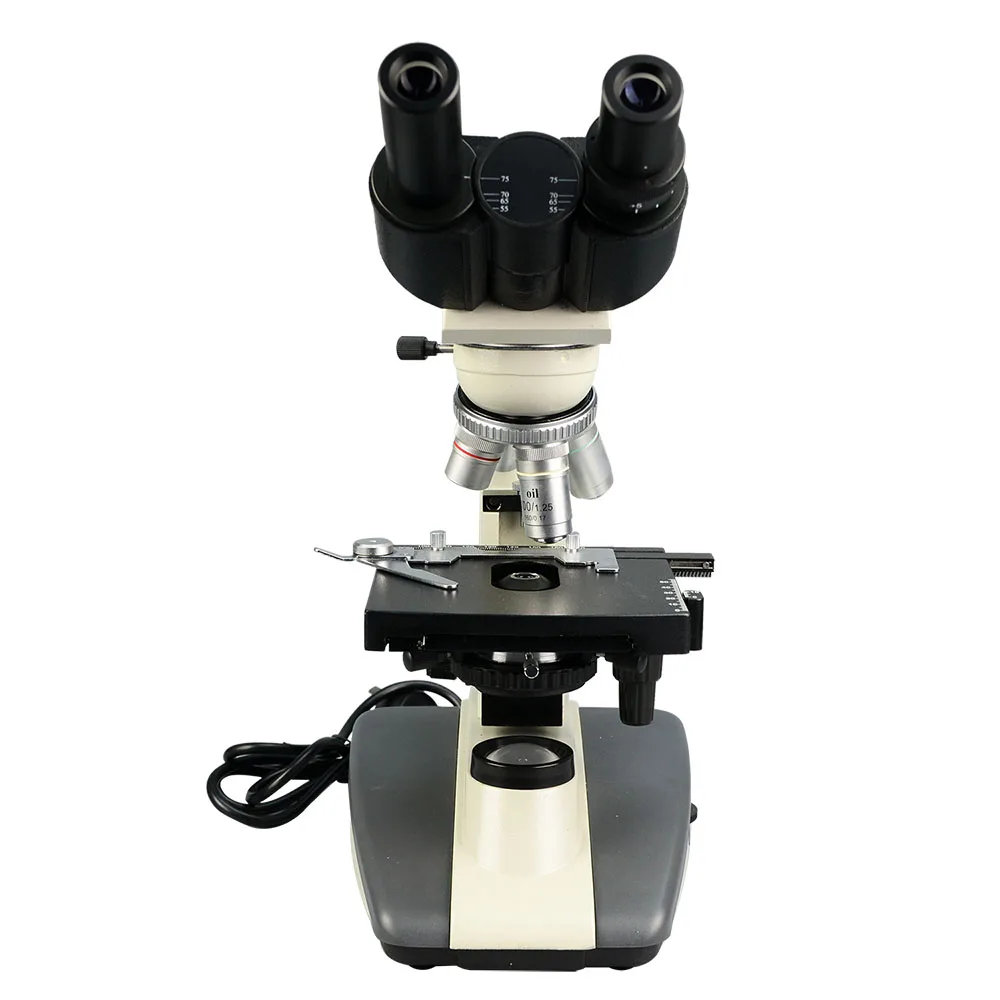

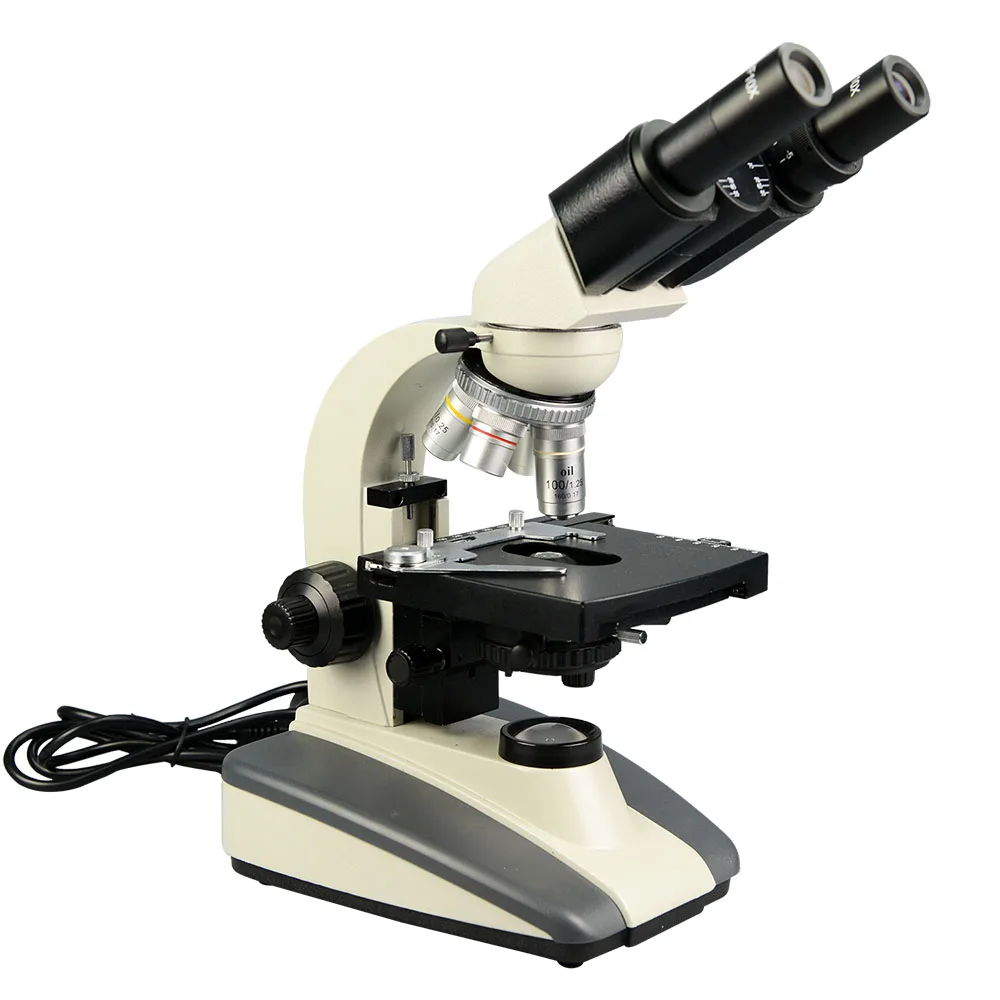

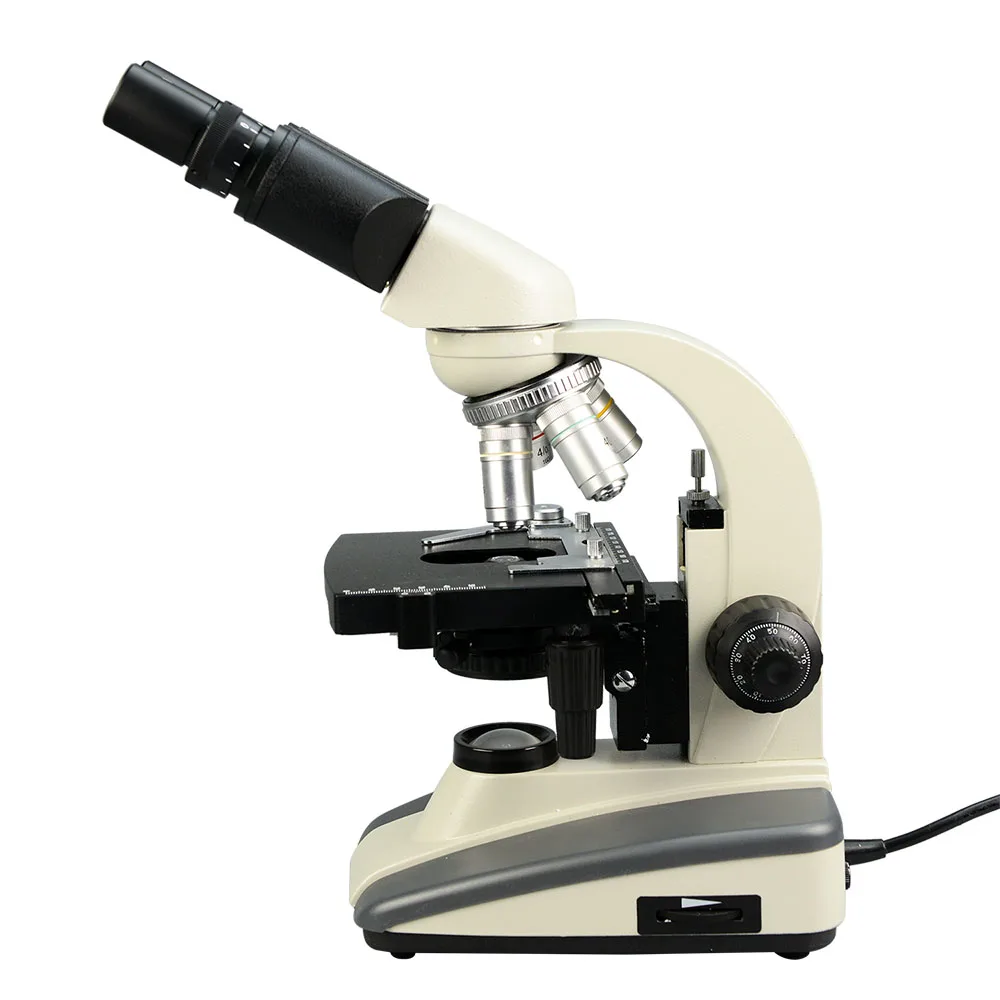

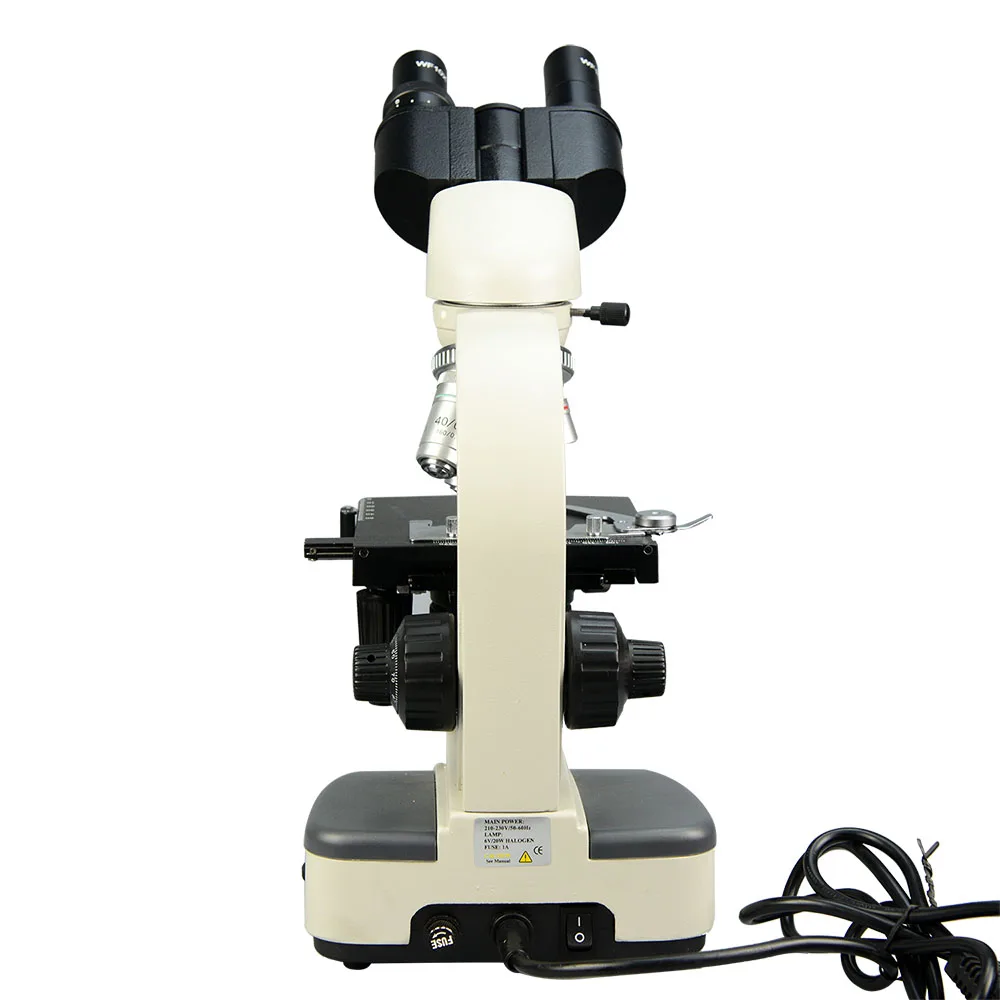

    High-Definition Laboratory Binocular Biological Microscope
    Application:
    Biological microscopes are used for the observation of microorganisms, cells, bacteria, tissue culture, suspensions, sediments, etc., for health units, universities, and research institutes. It can continuously observe the reproduction and division process of cells and bacteria in the culture solution. It is widely used in cytology, parasitology, industrial microbiology, botany and other fields. The important optical technical parameters of the microscope. People always hope to have a clear and bright ideal image during microscopic inspection. This requires that the optical technical parameters of the microscope reach a certain standard, and it must be used according to the microscope inspection. The purpose and actual situation are to coordinate the relationship between the parameters. Only in this way can we give full play to the proper performance of the microscope and obtain satisfactory microscopic examination results.
    Specification
    Model
    XSP07-01B
    Objective system
    45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil).
    Eyepiece system
    Wide Field Plan-Scope Eyepiece:WF10X (Optional :WF16X).
    Light bar
    Ø2-Ø30mm Iris Diaphragm And Ø32 Filter,ABBE Condenser: N.A. 1.25.
    Magnification
    40x-1600x.
    Observation head
    Articulated Free Binocular Head,Interpupillary Distance:55-75mm,30° Inclined., 360° Rotatable.
    Illumination
    Built-in illumination optional:6V/20W halogen lamp, 20W incandescent lamp, 1WLED lamp, rechargeable LED lamp.
    Stage
    Double Layers Mechanical Stage: 130X130mm, Moving Range X-Y: 60X30 mm.
    Focus system
    Coaxial Coarse And Fine Focusing Adjustable Mechanism: 20mm.
    Net weight/set:
    6KG
    Package:
    2sets/Carton 40X50X50cm, Cross Weight/Carton:12kg.
