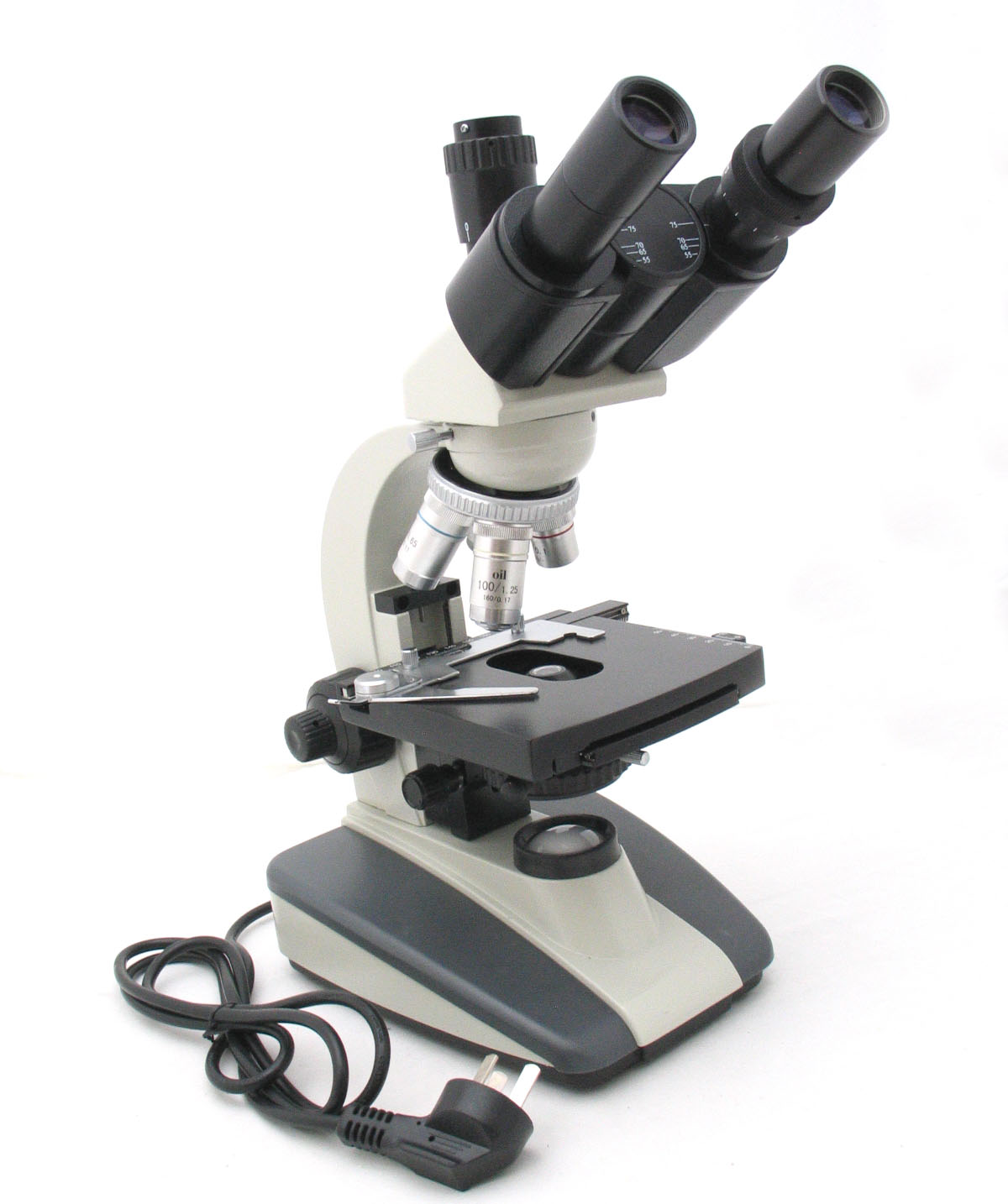

1000x Trinocular Biological Microscope With Digital Camera
1000x Trinocular Biological Microscope With Digital Camera
-
Specifications:
Model XSP07-01C Features 45mm Aechromatic Objective: 4X, 10X, 40X (S), 100X (S, oil)
Wide Field Plano-Scope eyepiece: WF10X
Ariculated Free Trinocular Head, 30° Inclined, 360° Rotatable
The Vertical Tube is used for Second Viewing or Connecting with Camera
Total Manification: 40X-1000X
Double Layers Mechanical Stage 125X130mm, Moving Range X-Y: 30X60mm
Ø2-Ø3mm Iris Ddiaphragm and Filter
ABBE condenser: N.A.1.25
Coaxial Coarse and Fine Focusing Adjustable Mechanism: 20mm
Built-in Adjustable Brightness Halogen Lamp 6V/20W
N.W.: 4.5kg
Model Txs07-01ca: With CCD Can Connected With Monitor or TV
Model Txs 07-01cb: With Digital Eyepiece Can Connected With Computer Through USB PortOuter packing Net Weight/Set: 4.5kgs
Package: 4 Sets/Carton:69X45X47cm
G.W.: 22kgsOther Model TXS07-01CA: With CCD Can Connected With TV
Model Txs 07-01CB: With Digital Eyepiece Can Connected With Computer Through USB PortEffect image:
