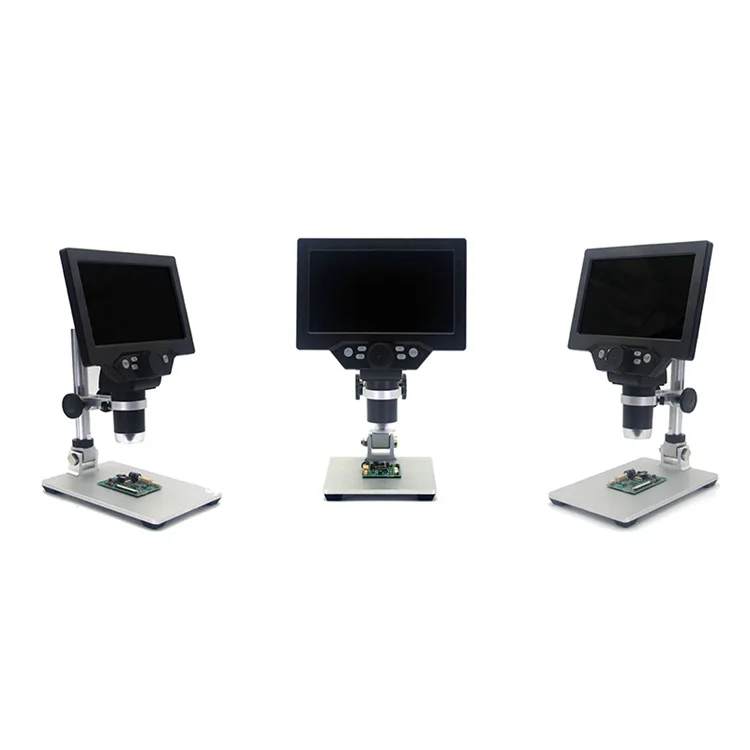

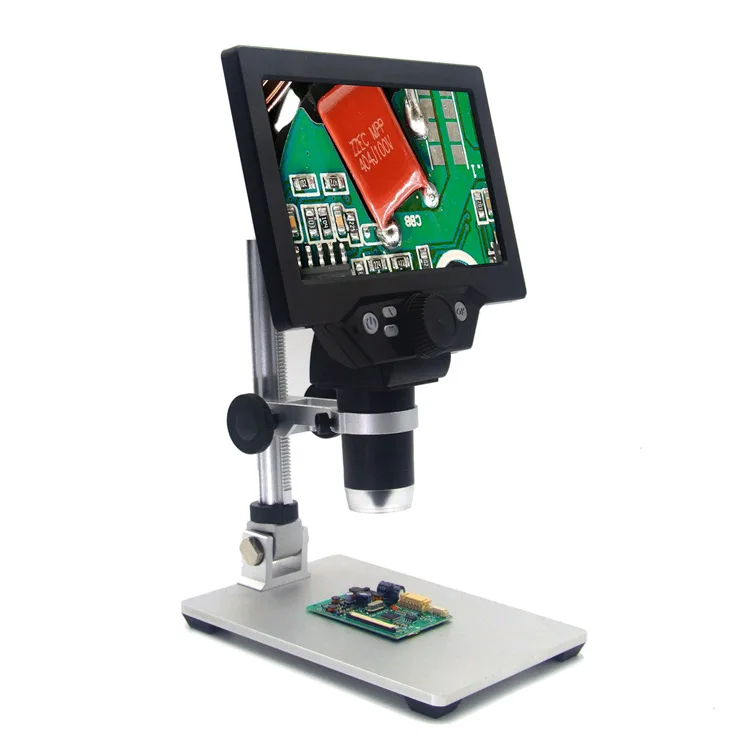

1-1200X Electronic Video 12MP Alloy Stand Microscopes Digital Microscope 7 Inch
1-1200X Electronic Video 12MP Alloy Stand Microscopes Digital Microscope 7 Inch
-
1200x Digital Microscope with 7 inch HD LCD Phone Repair Magnifier 1-1200X Electronic Video 12MP Alloy Stand MicroscopesFeatureThis is a digital microscope with continuous zoom, and it has a wide range of viewing options compared to other microscopes,
ranging from 1 to 1200 times magnification, and always finding a suitable multiple for you.
Angle adjustable can solve the problem of high reflection by the LEDs lights.
The microscope has a longer range than the others because it has certain amount of room to operate. It is very convenient to use
tweezers, electric soldering iron and others under your microscope.
HD 12 megapixel, display Screen: 7-inch HD LCD display, 1-1200 * continuous amplification system.
Sixteen language systems: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portugal, German, French, Italy, Turkey,
Czech, Poland, Traditional Chinese, Simplified Chinese.SpecificationType: power supplies type, built-in lithium cell type (optional)
Pixel: HD 12 megapixel
Display Screen: 7-inch HD LCD display
Magnification: 1-1200 * continuous amplification system.
Distance Between Object: 10MM to infinity (different distances correspond to different multiples)
Sixteen Language Systems: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portugal, German, French, Italy, Turkey,
Czech, Poland, Traditional Chinese, Simplified Chinese.
Cell(built-in): 1 * 3.7V 3000mAh Lithium Cell

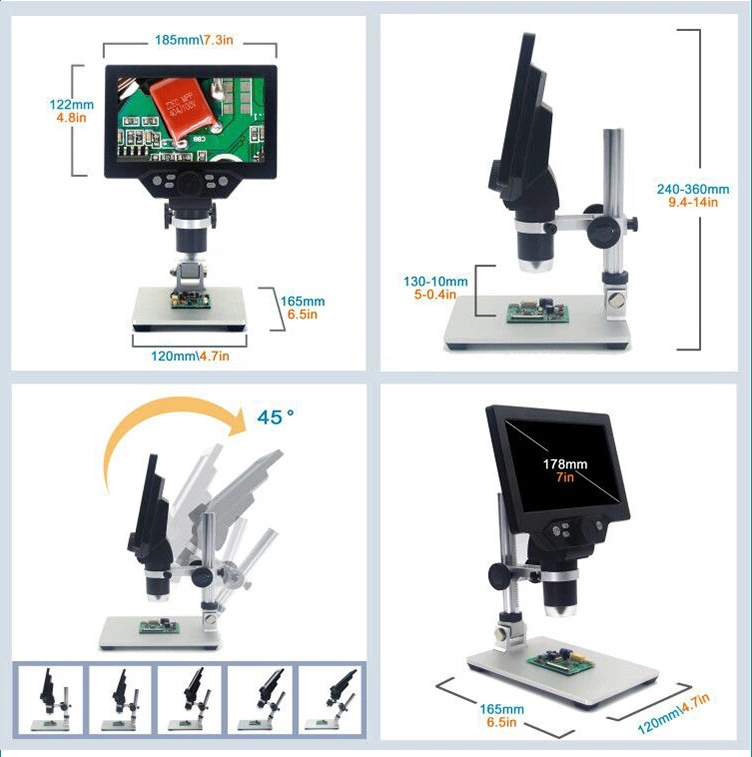

Package Size: 205 * 160 * 80mm / 8.1 * 6.3 * 3.1in
Package Weight: 1200g / 2.6lb
Advantage:
1: Vertical microscopes have an important drawback because they are used in many applications such as solder on PCBs, model
designation of some tiny chips, and metals, and it is easy to lose sight of the details of the objects due to reflection. Our
product specifically addresses this issue. It is an angle-adjustable digital microscope that solves the problem of high
reflection. It's a suitable experience in the electronics maintenance industry, and it's important to note that. This machine has
a longer range than the others because it has certain amount of room to operate. It is very convenient to use tweezers, electric
soldering iron and others under your microscope.
2: Most other microscopes are two-gears magnification, either too large or too small. There will always be visual regret. This is
a digital microscope with continuous zoom and zoom, and it has a wide range of viewing options compared to other microscopes,
ranging from 1 to 1200 times magnification, and always finding a suitable multiple for you to.

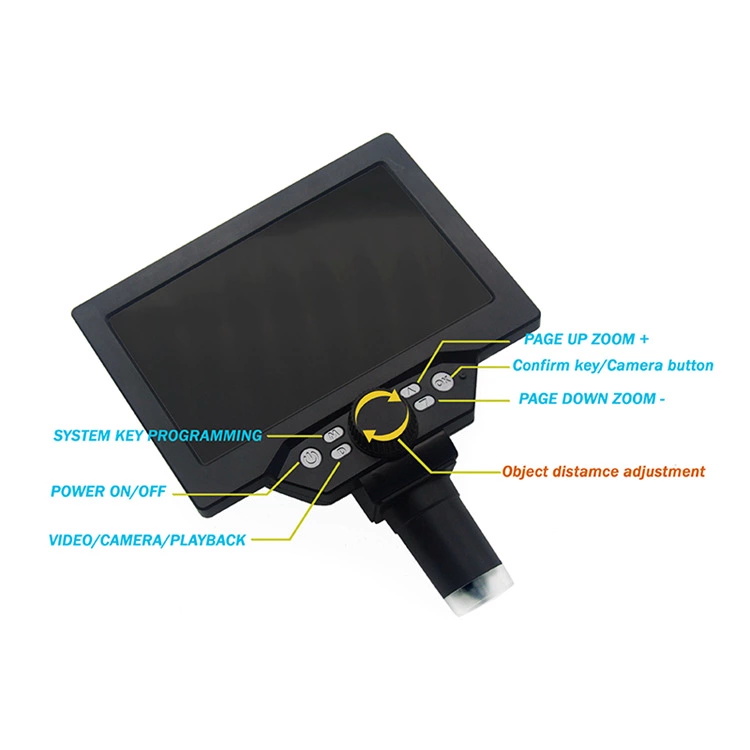

Button Setting:
Power: press 2 seconds to turn on/off
M Key: Function setting
Screen Saver: Off * 30 sec/1 mins/2 mins (optional)
Automatic Shutdown: Off * 3 minutes/5 minutes/10 minutes
Hz Light Source: 50 Hz/60 Hz
Language options: 16 Languages
Date Adjustment: year, month, day|hour, minute, second
Format: YES/NO
Default: YES/NO
In Video Mode:
Resolution: 1080FHD, 720P, VGA
Circulating Camera: Off/3 minutes/5 minutes/10 minutes. When the flash memory card is full, the foremost video data will be
deleted and the video will be saved.
HDR High Dynamic Range: On/Off (When power on, the video recording function will be turned on automatically if any object moves
under the lens without manual operation.)
Exposure Compensation: 7 grades for option
Date Label: Display/Close-Date and Time can be selected on the screen
In Photo Mode:
Photograph Delay: Single. 2 seconds. 5 seconds. 10 seconds.
Photo Pixels: 1.3 M * 2 M * 5 M * 8 M * 10 M * 12 M
Continuous Shootings: 3 consecutive shots
Photo Quality: Quality/Standard/Compression
Sharpness: Strong/Standard/Soft
Color: Nothingness/Black and White
ISO: Automatic * 100 * 200 * 400
Exposure Compensation: 7 grades for option
Photo assist: Anti-hand shock on/off
Date label: On/Off
Watch: Up/Down Delete Protection
D Key: Mode Keys:
Switch: Camera mode, camera mode, playback mode:
Up, Down, OK (Photo/Video, Open)
1: Power supply DC interface (Micro USB).
2: Flash card socket, support 1-128GB. Class10 + speed
3: Light brightness regulator.
4: REST key, system restore. (If the machine is inoperable, press the key in this hole with a needle-like sharp object to restart
the machine)
5: Highlight 8 LED lamps with a continuous service life of up to 100,000 hours.

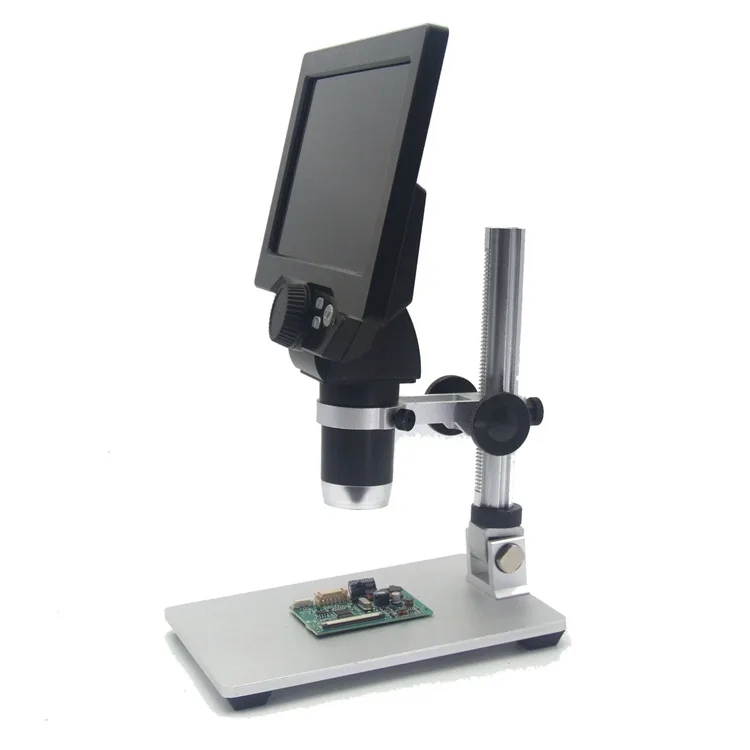

Special Intelligent Angle-adjustable Aluminum Alloy Support:
The nearest distance between the machine lens and the object is about 10mm, when the magnification is the maximum. On the
contrary, the farther away the lens is from the object, the smaller the magnification is.
Short distance high magnification, tall distance small magnification.
Notes:
Please allow 1-30mm error due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.Details Images
