XFCAM1080PHB/PHD Auto Focus C-mount WIFI HDMI CMOS Camera
-
XFCAM1080PHB/PHD is a multiple interfaces (HDMI+WiFi+SD card, so X here means multiple interfaces) CMOS camera with autofocus function (F means autofocus) and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer
For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital
For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital
In HDMI output, the camera embedded Auto/Manual focus function can obtain the clear image at ease. No hand rotation of the microscope Coarse/Fine knob is needed
For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software. So you can control the camera, process the image as JingTong 's other USB series camera.
Features
- All in 1( HDMI+WiFi) C-mount camera with Sony high sensitivity CMOS sensor
- Auto/Manual focus with the movement of the sensor
- For HDMI application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and control can also be realized by the XCamView
- 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application
- For HDMI application, 2.0M or 5M resolution image(1920*1080 XFCAM1080PHD,2592*1944 XCAM1080PHB) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved
- With the USB WiFi adapter, the XFCAM1080PHB/PHD can be used as WiFi camera, the advanced image processing software is used to display the video and capture image. support plug and play application
- Ultra-Fine Color Engine with perfect color reproduction capability(WiFi)
- With advanced video & image processing application, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB)
- XFCAM1080PHB/PHD can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc
The possible applications of XFCAM1080PHB/PHD are as follows:
- Scientific research, education (teaching, demonstration and academic exchanges)
- Digital laboratory, medical research
- Industrial visual (PCB examination, IC quality control)
- Medical treatment (pathological observation)
- Food (microbial colony observation and counting)
- Aerospace, military (high sophisticated weapons)
SpecificationOrder Code
Sensor & Size(mm)
Pixel(μm)
G Sensitivity
Dark Signal
FPS/Resolution
Binning
Exposure
XFCAM1080PHB
XF1080B
1080P/5M/Sony IMX178(C)
1/1.8"(6.22x4.67)
2.4x2.4
425mv with 1/30s
0.15mv with 1/30s
60/1920*1080(HDMI)
25/1920x1080(WiFi)
1x1
0.03ms~918ms
XFCAM1080PHD
XF1080D
1080P/2M/Sony IMX185(C)
1/1.9"(7.20x4.05)
3.75x3.75
1120mv with 1/30s
0.15mv with 1/30s
60/1920*1080
(HDMI)25/1920x1080
(WiFi)1x1
0.06ms~918ms
C: Color; M: Monochrome;

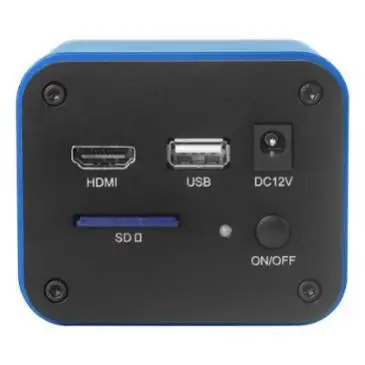

Interface & Button Functions
USB
USB Mouse/USB WiFi Adapter
HDMI
HDMI Output
DC12V
12V/1A Power in
SD
SD Card Slot
ON/OFF
Power On/off Switch
LED
Power Indicator
Other Specification for HDMI Output
UI Operation
With USB Mouse to operate on the embedded XCamView
Image Capture
JPEG Format with 5M or 2M Resolution in SD Card (XFCAM1080PHB/PHD)
Video Record
ASF Format 1080P 30fps in SD Card(8G)
Camera Control Panel
Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar
Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function, Muti-language and XCamView Version Information
Other Specification for WiFi Output
UI Operation
ToupView or ToupLite on Windows/Linux/OSX/Android Platform
WiFi Performance
802.11n 150Mbps; RF Power 20dBm(Maximum)
Maximum Connected Devices
3~6(According to the Environment and Connection Distance)
White Balance
Auto White Balance
Color Technique
Ultra-FineTM Color Engine (WiFi)
Capture/Control API
Standard SDK for Windows/Linux/Mac(WiFi)
Recording System
Still Picture or Movie (WiFi)
Software Environment (for USB2.0 Connection)
Operating System
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1/10(32 & 64 bit)
OSx(Mac OS X)
Linux
PC Requirements
CPU: Equal to Intel Core2 2.8GHz or Higher
Memory:4GB or More
USB Port:USB2.0 High-speed Port(As Power Only, not as the USB Data Transfer)
Display:19” or Larger
CD-ROM
Operating Environment
Operating Temperature(in Centidegree)
-10~ 50
Storage Temperature(in Centidegree)
-20~ 60
Operating Humidity
30~80%RH
Storage Humidity
10~60%RH
Power Supply
DC 12V/1A Adapter
Extension
Picture C-mount Camera
Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;Microscope Camera
Telescope Camera:

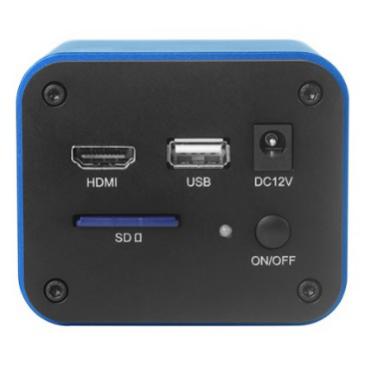

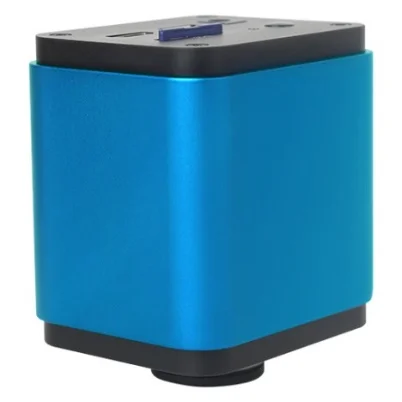

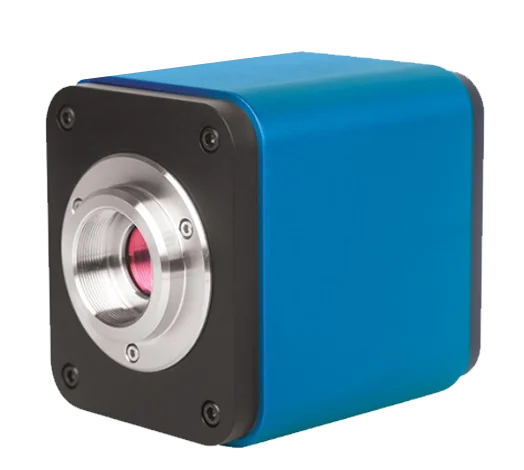

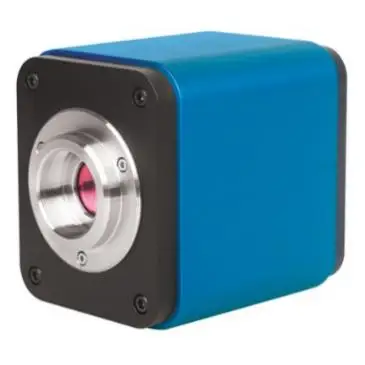

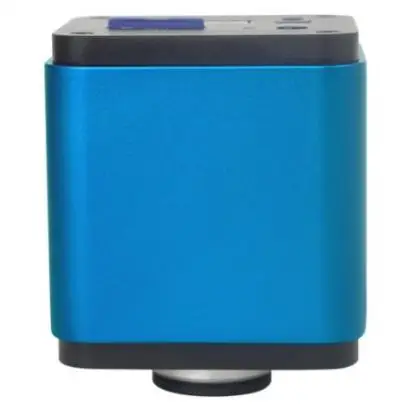

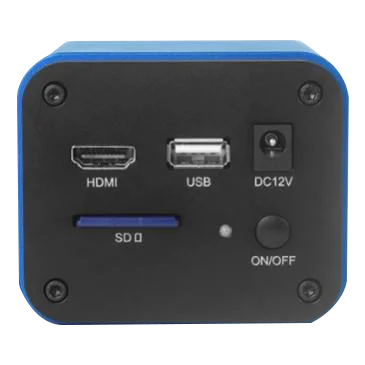

Product DetailsXFCAM 1080PHB/PHD and its Back Panel Different Views of XFCAM1080PHB/PHD XFCAM 1080PHB/PHD and Microscope Dimension

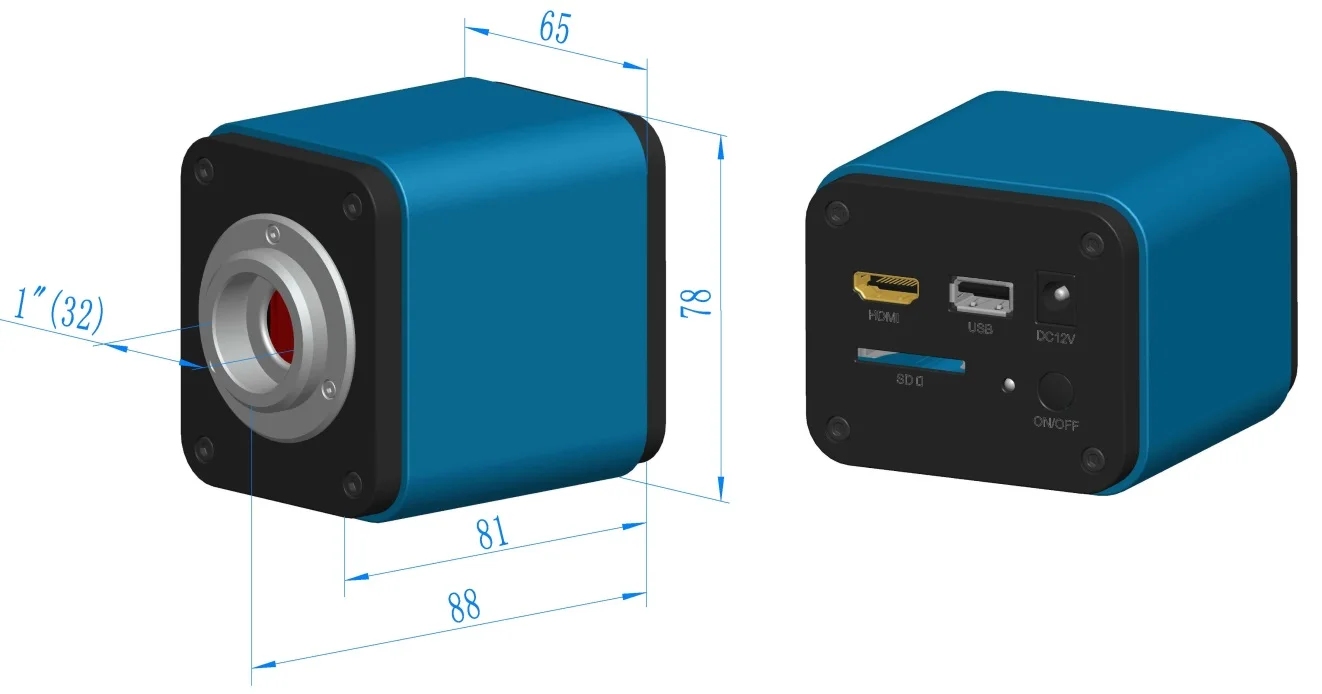

Dimension of XFCAM1080PHB/PHD

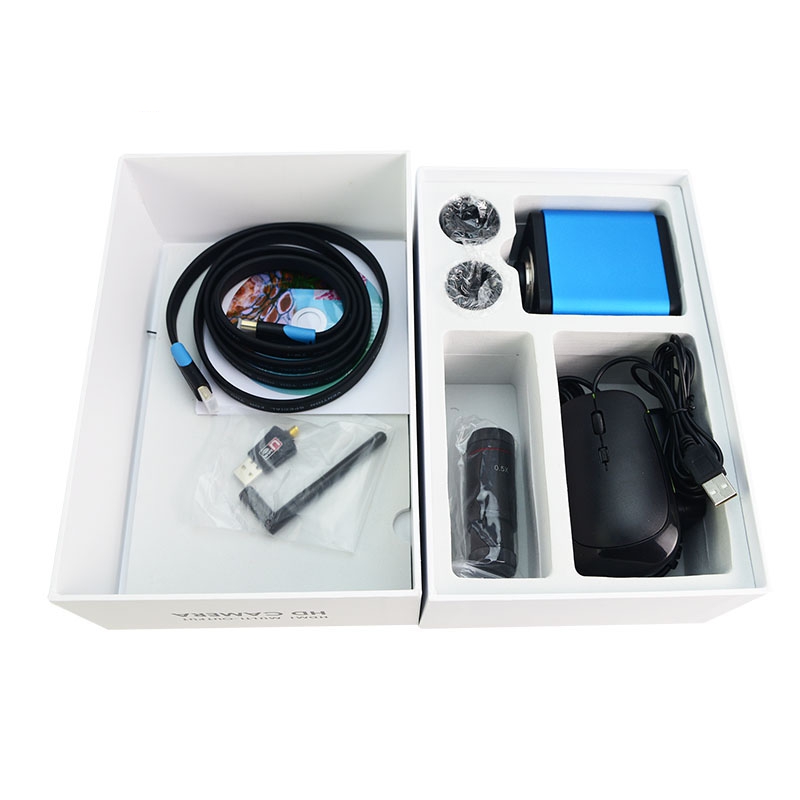

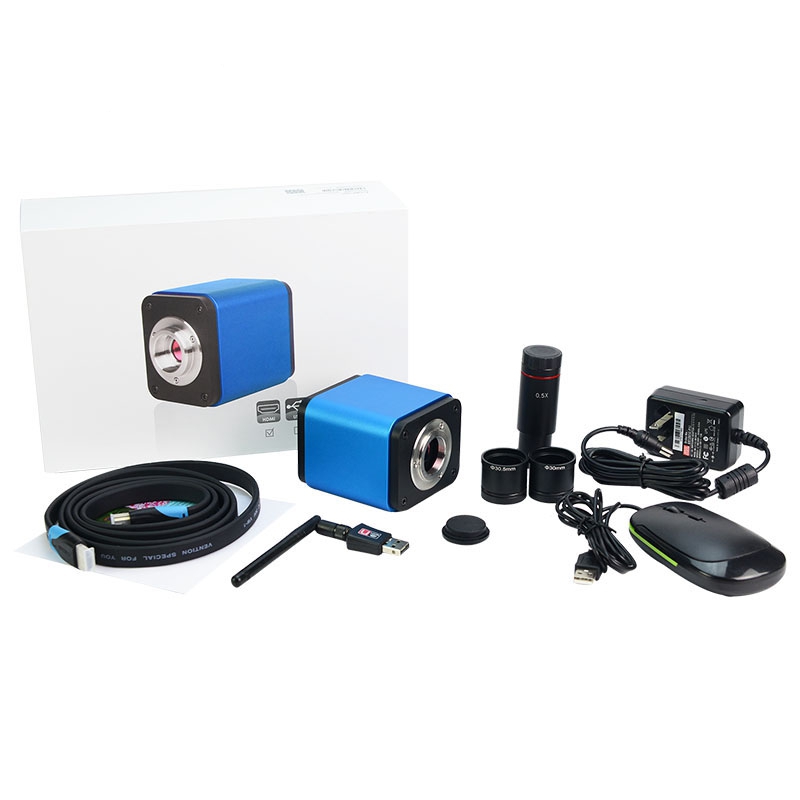

Packing List
Standard Packing List
A
Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box)
B
XFCAM1080PHB/PHD
C
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC
EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS
EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
D
HDMI Cable
E
USB Mouse
F
Wireless network adapter with USB interface
G
CD (Driver & utilities software, Ø12cm)

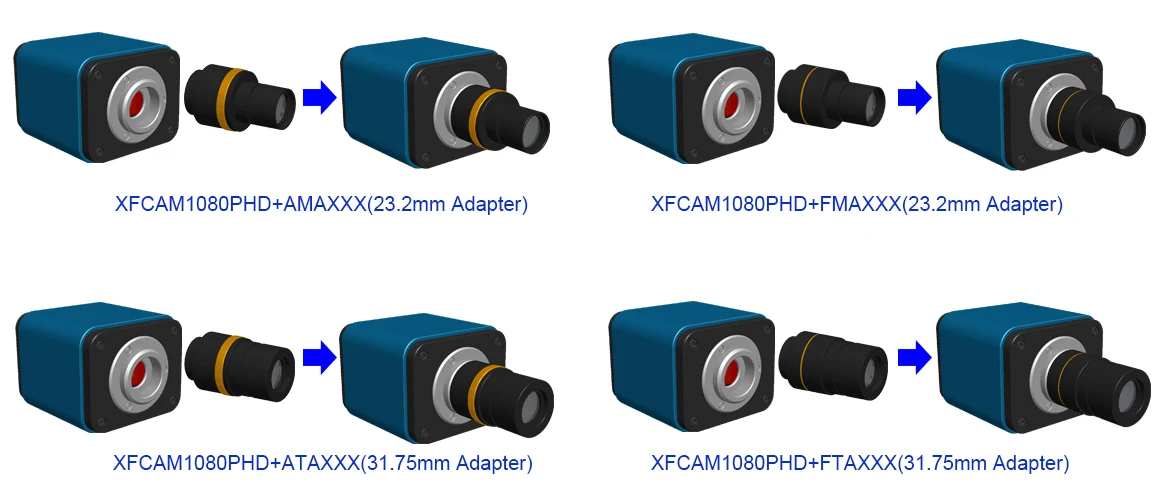

Optional Accessory
H
Adjustable lens adapter
C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)108001/AMA037
108002/AMA050
108003/AMA075C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)108008/ATA037
108009/ATA050
108010/ATA075I
Fixed lens Adapter
C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)108005/FMA037
108006/FMA050
108007/FMA075C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)108011/FTA037
108012/FTA050
108013/FTA075Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), JingTong engineer will help you to determine the right microscope or telescope camera adapter for your application;
J
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
K
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
L
Calibration kit
106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)M
SD Card(4G or 8G)
