XCAM1080PHA C-mount Support HDMI+USB CMOS Camera
-
XCAM1080PHA C-mount Support HDMI+USB CMOS Camera
XCAM1080PHA camera is a multiple interfaces (Support HDMI+USB2.0+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.
For Support HDMI output, a camera control panel and toolbar are overlayed on the Support HDMI screen, in this case, the USB mouse can be used to set the camera,browse and compare the captured image, play the video etal.
For USB2.0 output, unplug the mouse and plug in the USB2.0 cable, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek's other camera series.
XCAM1080PHA camera can be used for microscope, industrial stereo microscope, on-line inspection et al.
Order Code Sensor Sensor Size(mm) Pixel(um) FPS/Resolution Binning Exposure XCAM1080PHA
XP1080ASony IMX236(C)
1/2.8"(5.5x3.4)
2.8x2.8
1x1
0.4ms~999ms

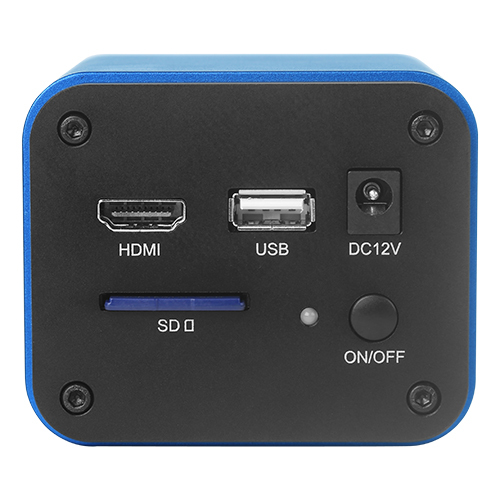

Interface & Button Functions
USB
USB Camera or USB Mouse
Support HDMI
Support HDMI Output
DC12V
12V Power in
SD
SD Card Slot
ON/OFF
Power On/Off Switch
LED Power On Indicator Other Specification for Support HDMI Output UI Operation With USB Mouse Image Capture High Speed in SD Card Video Record 1080P 30fps in SD Card Camera Control Panel Including Exposure, Gain, White Balance, Color
Adjustment, Sharpness and Denoising ControlToolbar Including Zoom, Mirror, Comparison, Freeze,
Cross, Browser FunctionOther Specification for USB Output White Balance Auto White Balance Color Technique
Ultra-FineTM Color Engine (USB)
Capture/Control API
Standard UVC for Windows/Linux/Mac(USB)
Recording System
Still Picture or Movie (USB)
Software Environment (for USB2.0 Connection) Operating System
Microsoft® Windows® XP /Vista /7/8/8.1(32 & 64 bit)
OSx(Mac OS X)
LinuxPC Requirements
CPU: Equal to Intel Core2 2.8GHz or Higher
Memory:4GB or More
USB Port:USB2.0 High-speed Port
Display: 19" or Larger
CD-ROM
Operating Environment Operating Temperature(in Centidegree)
-10~ 50
Storage Temperature(in Centidegree)
-20~ 60
Operating Humidity
30~80%RH
Storage Humidity
10~60%RH
Power Supply
DC 12V/2A Adaptor
Overall Dimensions Width x Depth x Height
78 mm (3.07") x 70 mm (2.76") x 92mm (3.62")
Shipping Weight
0.47 kg (1.0lbs)

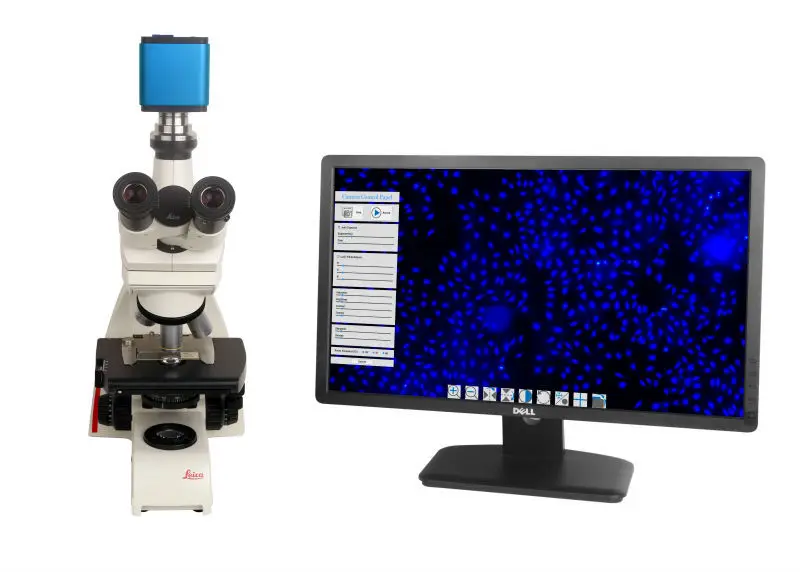

XCAM1080PHA and Microscope

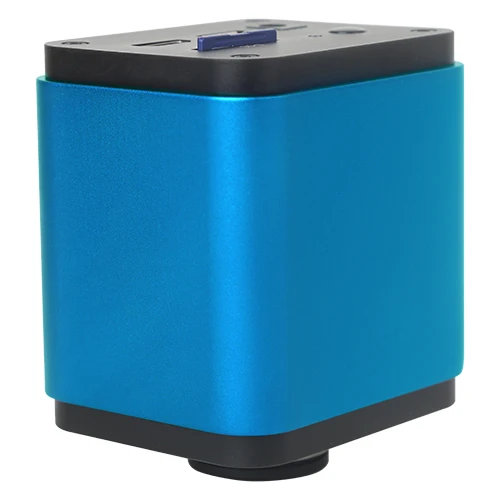

Front View of the XCAM1080PHA Camera Back View of the XCAM1080PHA Camera

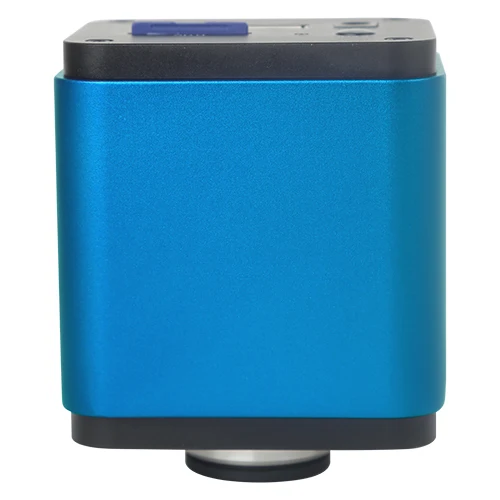

Normal View Side View

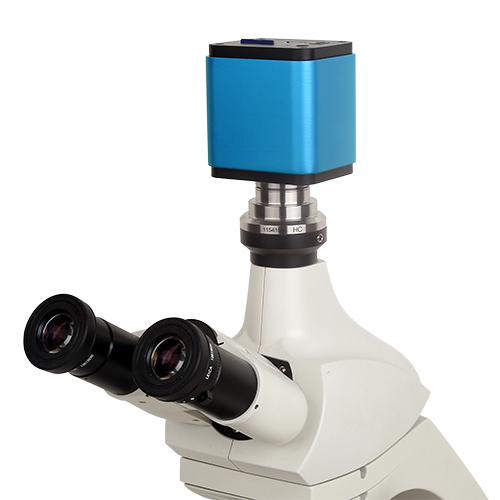

XCAM1080PHA Camera and Microscope

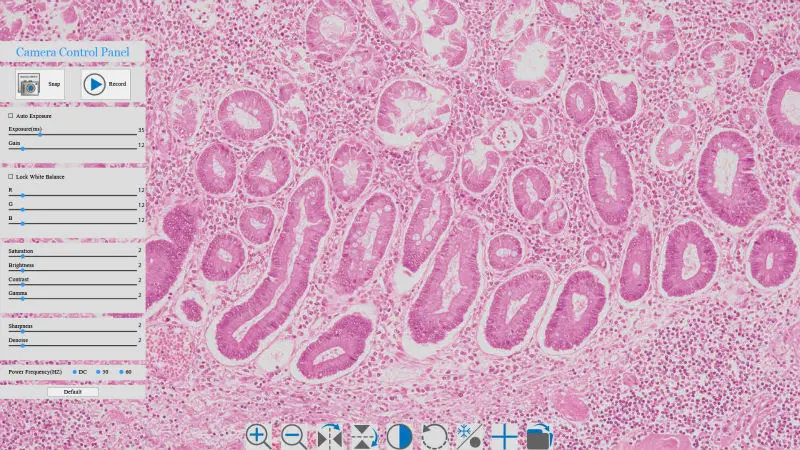

UI of the XCAM1080PHA Camera Potiential Application
Scientific research, education (teaching, demonstration and academic exchanges);
Digital laboratory, medical research;
Industrial visual (PCB examination, IC quality control);
Medical treatment (pathological observation);
Food (microbial colony observation and counting);
Aerospace, military (high sophisticated weapons);

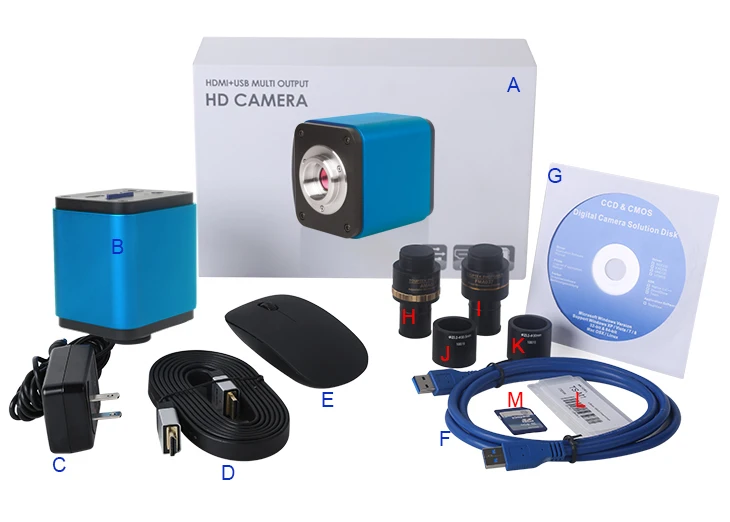

Packing Information for XCAM1080PHA
Packing Information for XCAM1080PHA camera Standard Packing List A
Gift box : L:25.5cm W:17.0cm H:19.0cm (1pcs, 1.55kg/ box)
B
Support HDMI+USB+SD Card all in 1 camera
C
Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC
EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS
EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
D Support HDMI Cable E USB Mouse F
High-speed USB2.0 A male to A male gold-plated connectors cable /2.0m
G
CD (Driver & utilities software, Ø12cm)
Optional Accessory H
Adjustable
lens
adapterC-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)108001/AMA037
108002/AMA050
108003/AMA075C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)108008/ATA037
108009/ATA050
108010/ATA075I
Fixed
lens adaptorC-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)108005/FMA037
108006/FMA050
108007/FMA075C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)108011/FTA037
108012/FTA050
108013/FTA075Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; J
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube
K
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
L
Calibration Kit
106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);

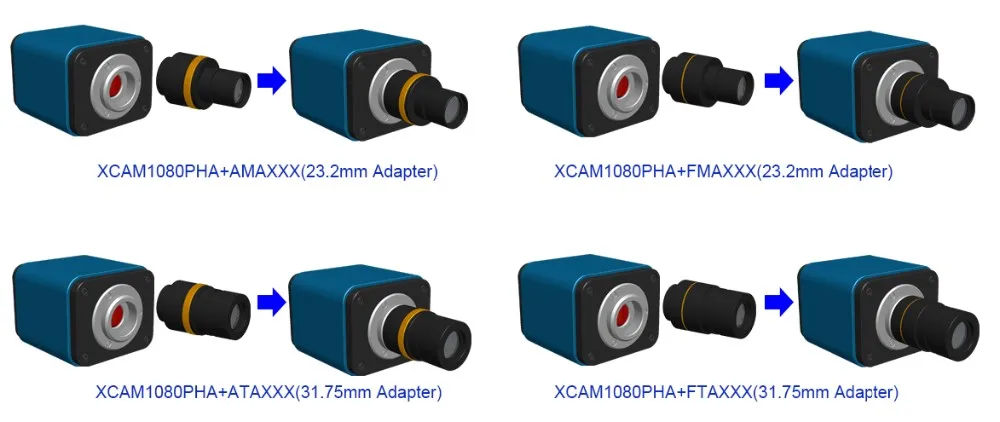

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)M SD Card(4G or 8G) Extension of XCAM1080PHA with Microscope or Telescope Adaptor
Application Picture C-mount Camera
Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;Microscope Camera
Telescope Camera:
